Professional Laser

PL-30.000RGB

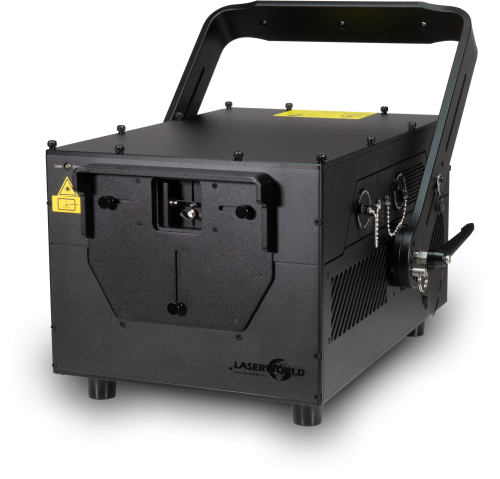

Laserworld PL-30.000RGB FB4 IP65

Professional Outdoor Show Laser

The Laserworld PL-30.000RGB FB4 IP65 represents the pinnacle of outdoor laser technology. With 30W guaranteed output at aperture, this graphics-capable laser system delivers breathtaking aerial effects for concerts, festivals, and large-scale productions.

Features an integrated Pangolin FB4 network interface for direct compatibility with BEYOND and QuickShow, plus stand-alone operation via internal SD card. The IP65-rated sealed housing with external cooling fins ensures reliable performance in any weather. Comes complete with a waterproof flight case for safe transport.

30W RGBIP65 RatedFB4 Built-in35kpps Scanners

Technical Specifications

Detailed technical data for the PL-30.000RGB FB4 IP65

Guaranteed Power30,000mW (30W)
Red (638nm)9,000mW
Green (520nm)12,000mW
Blue (450nm)12,000mW
Beam Diameter~6.5mm
Beam Divergence0.9 mrad
Scan Speed35kpps @ 8°
Max Scan Angle50°
Control InterfacesFB4, ILDA, DMX, ArtNet, LAN
IP RatingIP65 (Waterproof)
Power Supply85-250V AC, 50/60Hz
Power Consumption900W
Dimensions427 x 280 x 220 mm
Weight26 kg

Safety Features

  • Interlock connector for emergency stop and safety systems
  • Key switch operation prevents unauthorized use
  • Scan-fail safety system protects against scanner failure
  • Emission indicator LED for active laser output warning
  • Compliant with international laser safety standards

Perfect For

  • Outdoor festivals and concerts
  • Stadium and arena productions
  • Architectural laser installations
  • Corporate events and product launches
  • Touring productions requiring weather resistance

Projects

Concert Production

Festival Stage

Live Performance

Event Production

Corporate Show

Interested in the PL-30.000RGB
for your production?

Contact Us
